TRAILERS
Carl's Auto Parts is proud to announce that we are offering five new product lines to our already impressive catalog. We've partnered with CargoPro, SnoPro, Stealth, Loadtrail and H&H to offer a complete lineup of trailers. Enclosed, open air, utility, car haulers, motorcycles and snowmobiles trailers are all available now at Carl's Auto Parts. Regardless of the type of cargo you haul, we may have it onsite, or be able to order it for you! In addition to our new trailer lines, we also have some previously owned trailers as well. Use the buttons below, or the menu options, to see them.
Elevation Series – Gooseneck
SnoPro/CargoPro Trailers
CargoPro & SnoPro Trailers incorporates quality, style and function into every model. It’s three conveniently located manufacturing facilities allow for the industry best-lead times. It’s 200+ models of open and enclosed trailers are built with high-quality box tube aluminum, packed with top-of-the-line standard features and have virtually end-less features available.
Carl's Auto Parts is a licensed distributor for SnoPro, CargoPro and Stealth trailers. We offer the full product lines available to order. Listed Models have many configuration options. Please check our inventory page for in stock items or call Carl's Auto Parts for size, availability and ordering information: 207-794-6778. We're here to help you get the trailor you need!
Elevation
Elevation Siloa
Gooseneck 8.5×38-AS
2020 SnoPro Trailers Elevation G8.5x38-AS
Built for serious mountain sledding, by craftsmen with an affinity for the backcountry, the Elevation Series is designed to enhance the time you spend both on and off the snow. Consider the Elevation your “Garage away from home”, parked at 7,000 feet above sea level.STANDARD FEATURES
| All Aluminum Construction | |||
| 16″ O/C Floor, Roof and Ceiling | |||
| 2″ x 8″ Box Tube, Main-Frame | |||
| .040 Exterior Skin, Bonded | |||
| Radius Roof Construction | |||
| 7″ HD Exterior Base Trim | |||
| 45 Degree Down, 6K Braked Dexter Torsion Ride Axles | |||
| Spread Axle Design | |||
| 16″ Black Aluminum Rims | |||
| Sloped Drive Over Fender Kit w/Ski Guides | |||
| White Luan Walls and Ceiling | |||
| 3/4″ Quadply Decking | |||
| (3) LED Dome Lights | |||
| Roof Vent | |||
| Adjustable Gooseneck Coupler w/15,000 Safety Chains | |||
| Arctic Flex-Way 7-Way Connector | |||
| 32″ x 72″ Side Access Door w/Flip Down Aluminum Step | |||
| 4′ x 4′ Escape Door | |||
| 14″ x 14″ Fuel Door | |||
| Fold-Down Padded Bench (48″L) | |||
| Premium 50″ Fold-Up Work Bench w/ Integrated Tool Storage | |||
| 72″ Angled Side Ramp, Cableless Spring System | |||
| Car Hauler Grade, Rear Ramp w/FTH flap System and Paino Hinge System | |||
| Premium Aluminum Ramp Hinges | |||
| Freezer Latch System for Rear Ramp | |||
| 53″ x 19″ Sliding Window w/ Screen (No Bars) | |||
| (4) Reccessed 5,000# D-Rings | |||
| Premium Light Package (LED Strip Lights w/ Chrome Trim and Integrated Backup Lights, Red/Amber Marker Lights w/ Clear Lenses) | |||
| Hydraulic Landing Gear | |||
| Basic Heater Package – All-Sport Gooseneck Models[(2) 30# Propane Tank w/ Compartment (Under Goose), White Ceiling, Insulated Walls & Ceiling, 40K BTU Furnace, Safety Kit, Marine Grade Battery & Box, 96″ Furnace Cabinet w/ Integrated Boot Box] PKG | |||
| 96″ Overhead Split Cabinet w/ Center Shelf[Premium, (2) Flip-Up Doors, 96″(W) x 18″(D) x 18″(H)] | |||
| 44″ Deluxe Wardrobe Cabinet [GN EWP, Ducted (Requires Furnace Package)] | |||
| Track Melt System (EWP Gooseneck Models) – Includes (2) Full-Length Aluminum Ducts (Floor-Mounted), 40,000 BTU Furnace | |||
| Premium Wall-Mounted Coat Hanger (47.5″, 10 Hooks) | |||
| Premium Ceiling-Mounted Coat Hanger (38″, 22 Hooks) | |||
| 110V Package EWP – [(1) 60A Breaker Panel w/ Converter and Motobase Plug, (2) 3-Way Wall Switches, (1) GFI Wall Receptacle, (1) Standard Wall Receptacle, (1) USB Receptacle, (12) Puck Lights] | |||
| Mid-Level Stereo Package (Includes (4) Speakers, AMP & Subwoofer, Pioneer AM/FM/CD Player w/ BlueTooth, Battery Sold Separately) | |||
| LED Porch Light (2 over Rear Ramp, 1 over SAD, Escape Door & Side Ramp) |
Dimensions:
Length Box: 30'
Width Box: 99" | Door Opening: 91"
Height Box: 7′ | Door Opening: 81"
Overall Length 38'
Overall Width 101"
Overall Height 8’11"
Interior Length 29’2"
Interior Width 96"
Interior Height 6′ 10"
Deck Height 21"
Capacities:
Axle Capacity, Rear 6000 lbs Braked
Weights:
GVWR 12000 lbs
Chassis:
Axle Count 2
Wheels & Tires:
Wheels 16" Aluminum Rims
Tires, Rear Specification 235/85R16
The Elevation Series trailers are available in numerous sizes and configurations, call Carl's Auto Parts for size, availability and ordering information: 207-794-6778

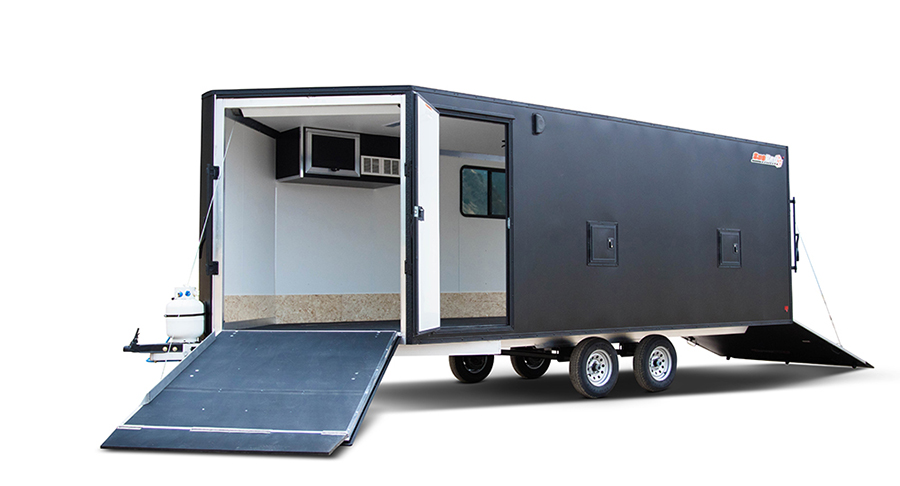

Deck Over ES
Deck Over ES
E101x22 (6.5)
2020 SnoPro Trailers Deckover-ES E101x22 (6.5)
The Deckover series is a true test of time, first introduced in 1996, this easy to use multi-season and multi-sport hauling machine has been a stand-by of the Snopro catalog since it all started. Available in 2, 3 and 4 sled configurations and now with two different trim-levels available, this traditional series, will continue to be a tradition for years to come
Features may include:
- All-Aluminum Construction
- 16" O/C Wall & Roof Studs
- 24" O/C Floor Crossmembers
- 2"x5" Subframe Tubing
- Torsion Ride Suspension
- Smooth .030" Bonded Side Panels
- One-Piece Aluminum Roof
- Rear Ramp Door w/ Spring Assist
- Front Ramp Door w/ Spring Assist
- 3/4" Water Resistant Decking
- White Luan Walls w/ 12" WR Kickplate
- Full Length Slide Track w/ D-Rings
- 24" Bright Stoneguard
- 3 Interior Dome Lights
- Roof Vent
- Recessed LED Lights
- Tri-Frame Tongue
- 8000 lbs A-Frame Coupler w/ 2" Ball
- 1500 lbs Wheel Jack
- (2) 7800 lbs Safety Chains
- 32"x66" Side Access Door
- Limited Lifetime Warranty
Dimensions:
Length Box: 22'
Width Box: 101" | Rear Door Opening: 91" | Front Door Opening: 58"
Height Box: 78" | Rear Door Opening: 72" | Front Door Opening: 72"
Overall Width 101"
Overall Length 28'5"
Overall Height 8'8"
Interior Width 98"
Interior Length 21’10"
Interior Height 76"
Deck Height 27"
Hitch Height To top of Ball: 23"
Capacities:
Axle Capacity, Rear 3500 lbs
Payload Capacity 3760 lbs
Weights:
GVWR 6000 lbs
Curb Weight 2240 lbs
Chassis:
Axle Count 2
Electric:
Electrical 12 Volt To top of Ball: 7-Way Round
Wheels & Tires:
Wheels 13" Silver Mod
Tires, Rear Specification 175/80R13
The Deck Over ES trailers are available in many width, length and axle configurations. Call Carl's Auto Parts for size, availability and ordering information: 207-794-6778
Open Snow
Open Snow
18' Drive On/Off L
2020 SnoPro Trailers Open Snow 18' Drive On/Off L
With a variety of styles and sizes to choose from, we’ve got just the right open snowmobile trailer to suit your specific needs. Whether you’re towing 1,2,3, or even 4 sleds, our open trailers are built to the same quality and specifications that you’ll find in our enclosed model lines.
Features may include:- All-Aluminum Construction
- 24" O/C Crossmembers
- Torsion Ride Suspension
- 1/2" Marine Tech Decking
- 4' Stowaway Ramp w/ Super Guides
- Recessed LED Marker Lights
- 1200 lbs Wheel Jack
- Straight Pull w/Underwings
- 6000 lbs Straight Coupler w/ 2" Ball
- (2) 5000 lbs Safety Chains
- Full Length Slide Track Tie Down System
- w/ (1) Sliding D-Ring & (1) Ski Tie Down Bar Per Machine
- Limited 4-Year Warranty
Dimensions:
Width Deck: 101"
Length Deck: 18'
Deck Height 27"
Overall Length 24'
Overall Width 101"
Hitch Height To top of ball: 22"
Capacities:
Axle Capacity, Rear 2200 lbs
Weights:
GVWR 4400 lbs
Chassis:
Axle Count 2
Electric:
Electrical 12 Volt Power Connection: 7-Way Round
Wheels & Tires:
Tires, Rear Specification 175/80R13
Wheels 13" Silver Mod
The Open Snow Series trailers are available in numerous sizes and configurations, call Carl's Auto Parts for size, availability and ordering information: 207-794-6778
Hybrid Snow
Hybrid Snow
101 X 12
2020 SnoPro Trailers Hybrid Snow 101X12
The HYBRID provides customers with benefits drawn from all of our popular trailer lines. Built on a flat trailer chassis, the Hybrid is a fully-enclosed unit with .030” exterior skin and a rear ramp door. Built with a tapered-nose and front access door, styled after our signature cap design, the Hybrid is aerodynamic, extremely lightweight and as versatile as any other model in our lineup.Features may include:
- All-Aluminum Construction
- 16" O/C Wall & Roof Studs
- 24" O/C Floor Crossmembers
- 2"x5" Subframe Tubing
- Torsion Ride Suspension
- Screwless .030" Bonded Side Panels
- One-Piece Aluminum Roof
- Rear Ramp Door w/ Spring Assist
- 19"x58" Front Access Door
- 5/8" Water Resistant Decking
- Full Length Slide Track w/ Ski Tie Down Bars
- 12" Plywood Kickplate
- Interior Dome Light
- Louver Vents
- Recessed LED Lights
- Wishbone Tongue w/ Straight Coupler
- Round Radius Diamond Plate Nose
- 1200 lb. Wheel Jack
- (2) 5000 lb. Safety Chains
- Limited 4-Year Warranty
Dimensions:
Length Box: 12'
Width Box: 101" | Door Opening: 93"
Height Box: 66" | Door Opening: 62"
Overall Length 16’2"
Overall Width 102"
Overall Height 7’8"
Interior Length 11′ 10"
Interior Width 98"
Interior Height 64"
Deck Height 25"
Hitch Height To top of Ball: 23"
Capacities:
Axle Capacity, Rear 3500 lbs
Payload Capacity 1932 lbs
Weights:
GVWR 2990 lbs
Curb Weight 1058 lbs
Chassis:
Axle Count 1
Electric:
Electrical 12 Volt Power Connection: 4-Way Flat
Wheels & Tires:
Wheels 12" E Rated
Tires, Rear Specification ST145/R12E
The Hybrid Snow Series trailers are available in numerous sizes and configurations, call Carl's Auto Parts for size, availability and ordering information: 207-794-6778
Inline-ES 7
Inline-ES 7 Series
Inline-ES 7 E7x16
2020 SnoPro Trailers Inline-ES 7 E7x16
The Snopro Inline series combine style, reliability and quality construction into one great line of trailers. Featuring 100% box-tube All-Aluminum construction using custom extrusions and the businesses best available components, it is no wonder the Snopro inline series is the best selling inline trailer in the industry
Features may include:
- All-Aluminum Construction
- 16" O/C Wall & Roof Studs
- 24" O/C Floor Crossmembers
- 2"x5" Subframe Tubing
- Torsion Ride Suspension
- Smooth .030" Bonded Side Panels
- One-Piece Aluminum Roof
- Rear Ramp Door w/ Spring Assist
- Front Ramp Door w/ Spring Assist
- 3/4" Water Resistant Decking
- Polished Aluminum Fenders
- Limited Lifetime Warranty
- Full Length Slide Track w/ D-Rings
- 24" Bright Stoneguard
- White Luan Walls w/ 12" WR Kickplate
- 3 Interior Dome Lights
- Roof Vent
- Recessed LED Lights
- Tri-Frame Tongue
- 8000 lbs A-Frame Coupler w/ 2" Ball
- 1500 lbs Wheel Jack
- (2) 7800 lbs Safety Chains
- 32"x66" Side Access Door
Dimensions
Length Box: 18'
Width Box: 84" | Rear Door Opening: 74" | Front Door Opening: 55"
Height Box: 78" | Rear Door Opening: 72 1/4" | Front Door Opening: 72"
Overall Length 24’9"
Overall Width 101"
Overall Height 8’7"
Interior Length 17’10"
Interior Width 81"
Interior Height 76"
Deck Height 21"
Hitch Height 16"
Capacities:
Axle Capacity, Rear 3500 lbs
Payload Capacity 4000 lbs
Weights:
GVWR 6000 lbs
Curb Weight 2000 lbs
Chassis:
Axle Count 1
Electric:
Electrical 12 Volt Power Connection: 7-Way Round
Wheels & Tires:
Tires, Rear Specification 205/75R15
Wheels 15" Silver Mod
The Inline ES series trailers range in size and axel configurations. Call Carl's Auto Parts for size, availability and ordering information: 207-794-6778
Wood Deck 2.0
Wood Deck 2.0
ULS6.5X16-2.0
2020 CargoPro Trailers Wood Deck 2.0 ULS6.5X16-2.0
The next generation of versatility.
Features may include:
- All-Aluminum Construction
- 24" O/C Floor Crossmembers
- 2"x5" Subframe Tubing
- 2" Straight Pull Coupler
- 4" Drop Leaf Spring Axles
- (2) 7800 lbs Safety Chains
- Welded Aluminum Fenders
- Decking: 2"x8" Heat Treated Planking
- Integrated Aluminum Rear Ramp
- 1500 lbs Wheel Jack
- Fixed 1"x2" Aluminum Rail Kit
- Recessed LED Marker Lights
- 7-Way Round Power Connection
- Limited 4 Year Warranty
Dimensions:
Width Deck: 80"
Length Deck: 192"
Overall Length 240"
Overall Width 102"
Deck Height 19"
Hitch Height 16"
Capacities:
Axle Capacity, Rear 3500 lbs
Payload Capacity 4323 lbs
Weights:
Curb Weight 1487 lbs
GVWR 6000 lbs
Chassis:
Axle Count 2 - Braked
Wheels & Tires:
Wheels 15" Silver Mod
Tires, Rear Specification 205/75R15
The Wood Deck series trailers range in size and axle configurations. Call Carl's Auto Parts for size, availability and ordering information: 207-794-6778

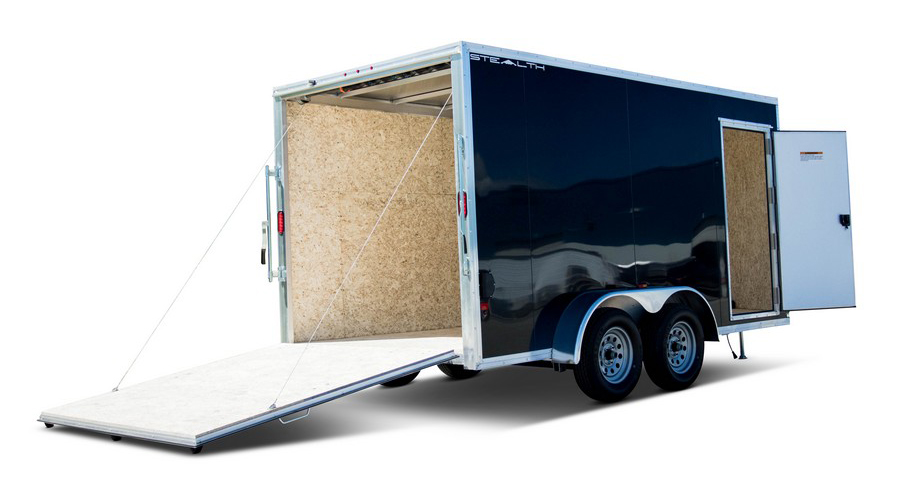

Stealth Enclosed
Stealth Enclosed
5/6-Wide 5x10 - C5x10S-IF
2020 CargoPro Trailers Stealth Enclosed 5/6-Wide
Superior Construction
Features may include:
- Integrated full aluminum frame, water resistant decking and wall materials and all-aluminum hardware Built-In Style
- Standard V-Nose Design, over-sized exterior/interior trim and standard screw-less exterior Hassle-Free Ownership
- Save on maintenance with our jig-built quality aluminum construction and top-of-line industry leading components Long-Term Value
- Longer on average ownership, superior resale and fuel savings
- All-Aluminum Construction, Integrated Frame Design
- Front Style: V-Front, 24"
- 2" x 3" Integrated Frame
- 24" O/C Floor & Roof Studs
- 16" O/C Wall Studs
- Screwless .030 Bonded Sides
- One Piece Aluminum Roof
- Axles: 1-2K Idler Leaf Spring Axle w/ 4" Drop
- 24" Stoneguard
- 2" Coupler w/Safety Chains
- 1200lb Wheel Jack
- 5/8" Water Resistant Decking
- 3/8" Water Resistant Interior Walls
- Wood Luan Walls w/Kickplate
- Interior Cove Trim
- 3" Exterior Trim
- (1) Dome Light
- Exterior LED Lighting
- Plastic Salem Vents
- Rear Ramp w/Spring Assist w/Aluminum Hardware
- 32" x 66" Side Door w/Paddle Handle & Piano Hinge
- 4-Year Limited Warranty
Dimensions:
Length Box: 10'
Width Box: 60" | Door Opening: 52"
Height Door Opening: 62"
Overall Length 14' 4"
Overall Width 80"
Overall Height 84"
Interior Length 9' 9"
Interior Width 57 1/2"
Interior Height 64"
Deck Height 18"
Hitch Height To Top Of Ball: 17"
Capacities:
Axle Capacity, Rear 2200 lb.
Payload Capacity 1325 lb.
Weights:
GVWR 2200 lb.
Curb Weight 875 lb.
Chassis:
Axle Count 1
Wheels & Tires:
Tires, Rear Specification 205/75R15
Wheels 15" Silver Mod
The Stealth Enclosed 5/6 are single axle configurations, any vary in size. Please call Carl's Auto Parts for size, availability and ordering information: 207-794-6778
Stealth Enclosed 7 Wide
Stealth Enclosed 7-Wide 7x18
C7x18S-IF
2020 CargoPro Trailers Stealth Enclosed 7-Wide 7x18
Superior Construction
Features may include:
- Integrated full aluminum frame, water resistant decking and wall materials and all-aluminum hardware Built-In Style
- Standard V-Nose Design, over-sized exterior/interior trim and standard screw-less exterior Hassle-Free Ownership
- Save on maintenance with our jig-built quality aluminum construction and top-of-line industry leading components Long-Term Value
- Longer on average ownership, superior resale and fuel savings
- All-Aluminum Construction, Integrated Frame Design
- Front Style: V-Front, 24"
- 2" x 4" Integrated Frame
- 24" O/C Floor & Roof Studs
- 16" O/C Wall Studs
- Screwless .030 Bonded Sides
- One Piece Aluminum Roof
- Axles: 1-3K Braked Leaf Spring Axle w/ 4" Drop (SA)
- Axles: 2-3K Braked Leaf Spring Axle w/ 4" Drop (TA)
- 24" Stoneguard
- 2 5/16" Coupler w/Safety Chains
- 2000lb Center Jack w/Foot
- 3/8" Water Resistant Interior Walls
- 3/4" Water Resistant Decking
- Interior Cove Trim
- 3" Exterior Trim
- (2) Dome Light w/Switch
- Exterior LED Lighting
Dimensions:
Length Box: 18'
Width Box: 82 1/2" | Door Opening: 76"
Height Door Opening: 75"
Overall Length 22' 10"
Overall Width 101"
Overall Height 100"
Interior Length 17' 10"
Interior Width 79 1/2"
Interior Height 79"
Deck Height 19"
Hitch Height To Top Of Ball: 18"
Capacities:
Axle Capacity, Rear 3500 lb. Braked
Payload Capacity 5320 lb.
Weights:
GVWR 7000 lb.
Curb Weight 1680 lb.
Chassis:
Axle Count 2
Wheels & Tires:
Tires, Rear Specification 205/75R15
Wheels 15" Silver Mod
The Stealth 7 Wide Series trailers are available in several lengths, all are tandem axle configurations. Call Carl's Auto Parts for size, availability and ordering information: 207-794-6778
Stealth Enclosed 8 Wide
Stealth Enclosed 8×18
C8x18S-IF
2020 CargoPro Trailers Stealth Enclosed 8-Wide C8x18S-IF
Superior Construction
Features may include:
- Integrated full aluminum frame, water resistant decking and wall materials and all-aluminum hardware Built-In Style
- Standard V-Nose Design, over-sized exterior/interior trim and standard screw-less exterior Hassle-Free Ownership
- Save on maintenance with our jig-built quality aluminum construction and top-of-line industry leading components Long-Term Value
- Longer on average ownership, superior resale and fuel savings
- All-Aluminum Construction, Integrated Frame Design
- Front Style: V-Front, 36"
- 2" x 5" Integrated Frame
- 16" O/C Floor & Roof Studs
- 16" O/C Wall Studs
- Screwless .030 Bonded Sides
- One Piece Aluminum Roof
- Axles: 2-3K Braked Leaf Spring Axle w/ 4" Drop
- 24" Stoneguard
- 2 5/16" Coupler w/Safety Chains
- 2000lb Center Jack w/Foot
- 3/8" Water Resistant Interior Walls
- 3/4" Water Resistant Decking
- Interior Cove Trim
- 3" Exterior Trim
- (2) Dome Light w/Switch
- Exterior LED Lighting
- Plastic Salem Vents
- HD Rear Ramp w/Spring Assist w/Aluminum Hardware
- 32" x 66" Side Door w/Paddle Handle & Piano Hinge
- 4-Year Limited Warranty
Dimensions:
Length Box: 18'
Width Box: 99" | Door Opening: 91"
Height Door Opening: 75"
Overall Length 22'
Overall Width 102"
Overall Height 100"
Interior Length 17' 10"
Interior Width 96"
Interior Height 79"
Deck Height 19"
Hitch Height To Top Of Ball: 18"
Capacities:
Axle Capacity, Rear 3500 lb. Braked
Payload Capacity 3850 lb.
Weights:
GVWR 7000 lb.
Curb Weight 2150 lb.
Chassis:
Axle Count 2
Wheels & Tires:
Tires, Rear Specification 205/75R15
Wheels 15" Silver Mod
The Stealth Enclosed 8 Wide series trailers are available in various lengths, and all are tandem axle configurations, with many options available. Call Carl's Auto Parts for size, availability and ordering information: 207-794-6778
Stealth Car Hauler
Car Hauler
C8x32SCH-IF
2020 CargoPro Stealth Trailers Enclosed Car Hauler C8.5x32CH-IF
We know that automobile enthusiasts demand a lot from a car-hauler, and that’s why we’ve invested countless hours in designing and manufacturing our line of automobile trailers. Need a hassle-free car-hauler that will just plain get the job done? Well, you’ve found one. And if it just so happens that you’ve been dreaming about a one-of-a-kind custom show trailer, we build them too!
Features may include:
- All Aluminum Construction
- Integrated Frame
- Flat Front w/ Cast Corners
- 32"X72" Side Man Door w/ Pull Out Step
- 16" O/C Crossmembers
- 3/4" Water Resitant Decking
- 3 LED Dome Lights with a Wall Switch
- White Luan Walls
- 6" Extruded Aluminum Kickplate
- 2-3K Torsion Braked Axles
- 15" Split Spoke Wheels W/ 205/75R15 Tires
- Roof Vent
- 2 5/16" Coupler
- 24" Stoneguard
- Trapered Rear Ramp Door with Spring Assist
- 5000 lbs Center Jack
- Exterior LED Lighting
- 48" Beaver Tail
- Heavy-Duty Recessed D-Rings
- Safety Chains
- Limited Lifetime Warranty
imensions:
Box Length 32'
Width Box: 99" | Door Opening: 89"
Height Box: 84" | Door Opening: 81"
Overall Length 36'
Overall Width 102"
Overall Height 104.5"
Interior Length 31’10"
Interior Width 96"
Interior Height 82"
Deck Height 21.5"
Hitch Height To Top of Ball: 20.5"
Dimensions DOOR OPENING (WXH): 89" x 81"
Capacities:
Axle Capacity, Rear 5200 lbs
Payload Capacity 5485 lbs
Weights:
Curb Weight 4505 lbs
GVWR 9990 lbs
Chassis:
Axle Count 2- Braked
Wheels & Tires:
Wheels 15” T07 Aluminum
Tires, Rear Specification 225/75R15
The Stealth Car Hauler series trailers range in size and configurations, with many options available. Call Carl's Auto Parts for size, availability and ordering information: 207-794-6778
Supreme Car Hauler
Supreme Car Hauler
C8X20SUP-IF
2020 CargoPro Trailers Stealth Supreme Car Hauler C8X20SUP-IF
We are proud to introduce a new value option in the car trailering business – the Stealth Supreme Series enclosed car hauler. This model is value-priced and loaded with much sought after options. The feature list is long – but let’s point out a few key features: Standard Extruded Aluminum Decking, 7' Interior Height, Cast Corners and a 32" x 72" Side Access Door. Pound for pound, option for option, these may well be the best priced car trailer in the business!
Features may include:
- All-Aluminum Construction, Integrated Frame Design
- Front Style: Flat Front w/Cast Corners
- 2" x 5" Integrated Frame (16' to 20')
- 2" x 6" Integrated Frame (24')
- 2" x 8" Integrated Frame (28')
- 16" O/C Floor & Roof Studs
- 16" O/C Wall Studs
- Screwless .030 Bonded Sides
- One Piece Aluminum Roof
- Axles: 2-3K Braked Leaf Spring Axle w/ 4" Drop (16' to 20')
- Axles: 2-5.2K Braked Leaf Spring Axle w/ 4" Drop (24' to 32')
- 24" Stoneguard
- 2 5/16" Coupler w/Safety Chains
- 5000lb Center Jack w/Foot
- White Vinyl Faced Luan Walls
- Extruded Aluminum Decking (Box&Ramp)
- Extruded Kickpanel
- Interior Cove Trim
- 3" Exterior Trim
- (2) Dome Light w/Switch
- Exterior LED Lighting
- Plastic Salem Vents
- (4) HD 5,000# Recessed D-Rings
- Beavertail Construction
- HD Rear Ramp w/Spring Assist w/Aluminum Hardware
- 32" x 72" Side Door w/Paddle Handle & Piano Hinge
- 4-Year Limited Warranty
Dimensions:
Length Box: 20'
Width Box: 99" | Door Opening: 91"
Height Door Opening: 81"
Overall Length 24'
Overall Width 102"
Overall Height 104"
Interior Length 19' 10"
Interior Width 96"
Interior Height 82"
Deck Height 17"
Hitch Height To Top Of Ball: 19"
Capacities:
Axle Capacity, Rear 3500 lb. Braked
Payload Capacity 4420 lb.
Weights:
GVWR 7000 lb.
Curb Weight 2580 lb.
Chassis:
Axle Count 2
Wheels & Tires:
Tires, Rear Specification 205/75R15
Wheels 15" Silver Mod
The Supreme Car Haulers are available in length configurations, with many options. Call Carl's Auto Parts for size, availability and ordering information: 207-794-6778
Ultimate Contractor
Ultimate Contractor
C7x14S-UCP-IF
2020 CargoPro Trailers Stealth Ultimate Contractor C7x14S-UCP-IF
Features may include:
- All-Aluminum Construction, Integrated Frame Design
- Front Style: V-Front, 36"
- 2" x 5" Integrated Frame
- 16" O/C Floor & Roof Studs (All Box-Tube)
- 16" O/C Wall Studs
- Screwless .030 Bonded Sides
- One Piece Aluminum Roof
- Axles: 2-3K Braked Leaf Spring Axle w/ 4" Drop
- 24" Stoneguard
- 2 5/16" Coupler w/Safety Chains
- 2000lb Center Jack w/Foot
- 3/8" Water Resistant Interior Walls
- 3/4" Water Resistant Decking
- Interior Cove Trim
- 3" Exterior Trim
- (2) Dome Light w/Switch
- Exterior LED Lighting
- Plastic Salem Vents
- Double Barn Doors w/Stowable Removable Ramp Kit
- Aluminum Hardware for Barn Doors
- 14' Catwalk System w/(4) HD Ladder Racks & Front Ladder
- Rear Roller for Last Ladder Rack
- 32" x 72" Side Door w/Paddle Handle & Piano Hinge w/Butterfly Locking Bar
- 4-Year Limited Warranty
Dimensions
Length Box: 14'
Width Box: 82 1/2" | Door Opening: 76"
Height Door Opening: 75"
Overall Length 18' 8"
Overall Width 101"
Overall Height 100"
Interior Length 13' 10"
Interior Width 79 1/2"
Interior Height 79"
Deck Height 19"
Hitch Height To Top Of Ball: 18"
Capacities
Axle Capacity, Rear 3500 lb. Braked
Payload Capacity 5410 lb.
Weights
GVWR 7000 lb.
Curb Weight 1590 lb.
Chassis
Axle Count 2
Wheels & Tires
Tires, Rear Specification 205/75R15
Wheels 15" Silver Mod
The Ultimate Contractor trailers are available in four length and width configurations, and are tandem axle trailers. There are also many additional options that may be added. Call Carl's Auto Parts for size, availability and ordering information: 207-794-6778
SE03 Series
SE03 Series
SE03 7 X 14 shown
Available Sizes:
| SE8310031 | 83″ x 10′ Single Axle (2″ x 3″ Angle Frame) |
| SE8312031 | 83″ x 12′ Single Axle (2″ x 3″ Angle Frame) |
| SE8314031 | 83″ x 14′ Single Axle (2″ x 3″ Angle Frame) |
| SE7708031 | 77″ x 08′ Single Axle (2″ x 3″ Angle Frame) |
| SE7710031 | 77″ x 10′ Single Axle (2″ x 3″ Angle Frame) |
| SE7712031 | 77″ x 12′ Single Axle (2″ x 3″ Angle Frame) |
| SE7714031 | 77″ x 14′ Single Axle (2″ x 3″ Angle Frame) |
| SE7210031 | 72″ x 10′ Single Axle (2″ x 3″ Angle Frame) |
| SE7212031 | 72″ x 12′ Single Axle (2″ x 3″ Angle Frame) |
| SE7214031 | 72″ x 14′ Single Axle (2″ x 3″ Angle Frame) |
| SE6610031 | 66″ x 10′ Single Axle (2″ x 3″ Angle Frame) |
| SE6612031 | 66″ x 12′ Single Axle (2″ x 3″ Angle Frame) |
| SE6008031 | 60″ x 08′ Single Axle (2″ x 3″ Angle Frame) |
| SE6010031 | 60″ x 10′ Single Axle (2″ x 3″ Angle Frame) |
| SE6012031 | 60″ x 12′ Single Axle (2″ x 3″ Angle Frame) |
| SE6014031 | 60″ x 14′ Single Axle (2″ x 3″ Angle Frame) |
| SE4808031 | 48″ x 08′ Single Axle (2″ x 3″ Angle Frame) |
| SE4810031 | 48″ x 10′ Single Axle (2″ x 3″ Angle Frame) |
Specs:
| Axles: | 1-3.500 Lb Cambered Dexter Spring Idler |
| Couplers: | 2″ A-Frame 5,000 Lb |
| Crossmembers | 2″ x 3″ Angle Iron (3.07 lbs/ft) |
| D-Rings: | Hook, 3/8 X 2.75 (U-Hook) |
| EWR Class | SINGLE AXLE UTILITY |
| Fenders: | Weld On Smooth Plate |
| Finish (prep): | Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion |
| Finishing Coat/Primer | Sherwin-Williams Powdura OneCure Primer w/Polyester TGIC Gloss Powder Topcoat |
| Flooring: | Treated Wood |
| Frame: | 2″ x 3″ x 3/16″ Angle Iron |
| GAWR: | 3,500 Lb (ea axle) |
| GVWR: | 2,990 lb |
| Jack: | 2,000 Lb Top Wind |
| Lights: | D.O.T. Stop, Tail, Turn and Clearance LED |
| Product Line | Single Axle & Single Axle Landscape |
| Product Series: | SE03 |
| Safety Chains: | 1/4″ Grd. 30 w/Safety Latch Hook |
| Side Rails: | Weld-On |
| Suspension: | Multi-Leaf Spring |
| Tires: | 205/75 R15 LRC |
| Top Rail: | 2″ X 2″ 1/8″ Tubing |
| Tougue & Neck: | 3″ Channel (3.5 lbs/ft) |
| Up Rights: | 2″ x 2″ x 1/8″ Angle Iron |
| Wheels: | 15″ 5-Hole Sliver Mod |
| Wire Harness: | 16 Ga. 5-Way Double-Insulated w/4-way plug |
The SE series trailers range in size and axel configurations. Call Carl's Auto Parts for size, availability and ordering information: 207-794-6778

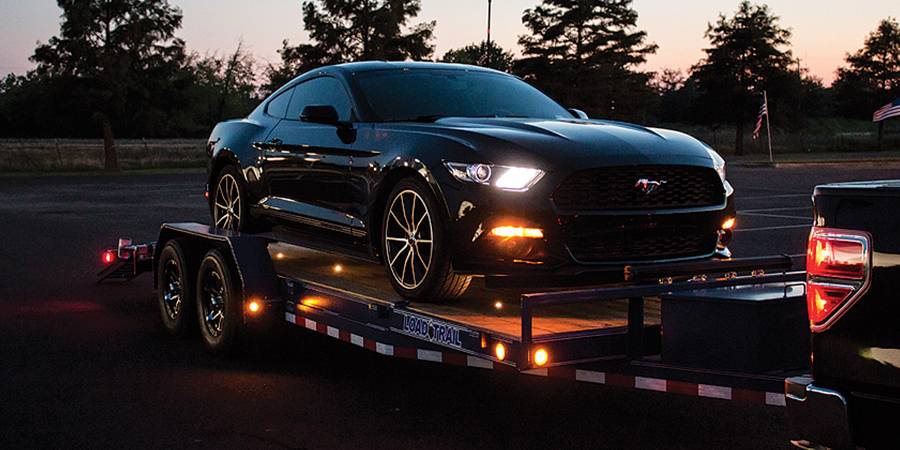

CH10 Series
Loadtrail CH 10 Car Haulers
CH10 7 X 22 Shown
Available Sizes:
| CH8312052 | 83″ x 12′ Tandem Axle Carhauler |
| CH8314052 | 83″ x 14′ Tandem Axle Carhauler |
| CH8316052 | 83″ x 16′ Tandem Axle Carhauler |
| CH8318052 | 83″ x 18′ Tandem Axle Carhauler |
| CH8320052 | 83″ x 20′ Tandem Axle Carhauler |
| CH8322052 | 83″ x 22′ Tandem Axle Carhauler |
| CH8324052 | 83″ x 24′ Tandem Axle Carhauler |
| CH8326052 | 83″ x 26′ Tandem Axle Carhauler |
| CH7716052 | 77 X 16′ Tandem Axle Carhauler |
| CH7718052 | 77 X 18′ Tandem Axle Carhauler |
| CH7212052 | 72″ x 12′ Tandem Axle Carhauler |
| CH7210052 | 72 X 10′ Tandem Axle Carhauler |
| CH7216052 | 72 X 16′ Tandem Axle Carhauler |
| CH6010052 | 60″ x 10′ Tandem Axle Carhauler |
| CH6012052 | 60″ x 12′ Tandem Axle Carhauler |
| CH0212052 | 102″ x 12′ Tandem Axle Carhauler |
| CH0214052 | 102″ x 14′ Tandem Axle Carhauler |
| CH0216052 | 102″ x 16′ Tandem Axle Carhauler |
| CH0218052 | 102″ x 18′ Tandem Axle Carhauler |
| CH0220052 | 102″ x 20′ Tandem Axle Carhauler |
| CH0222052 | 102″ x 22′ Tandem Axle Carhauler |
| CH0224052 | 102″ x 24′ Tandem Axle Carhauler |
| CH0226052 | 102″ x 26′ Tandem Axle Carhauler |
Specs:
| Axles: | 2-5,200 Lb Cambered Dexter Spring 1 Elec. NEV-R-ADJUST Brake |
| Couplers: | 2-5/16″ Adjustable |
| Crossmembers | 3″ Channel 24″ OC (3.5 lbs/ft) |
| D-Rings: | 3″ Standard D-Rings |
| EWR Class | CARHAULER |
| Fenders: | Weld On Diamond Plate |
| Finish (prep): | Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion |
| Finishing Coat/Primer | Sherwin-Williams Powdura OneCure Primer w/Polyester TGIC Gloss Powder Topcoat |
| Flooring: | Treated Wood |
| Frame: | 5″ Channel (6.7 lbs/ft) |
| GAWR: | 5,200 Lb (ea axle) |
| GVWR: | 9,990 lb |
| Jack: | Dropleg 7,000 Lb |
| Lights: | D.O.T. Stop, Tail, Turn and Clearance LED |
| Product Line | Car-Haulers & Bob Cats |
| Product Series: | CH10 |
| Ramps: | 5′ Slide-In Ramps |
| Safety Chains: | 12,600 Lb 1/4 X 28 G#70 |
| Suspension: | Multi-Leaf Spring |
| Tires: | 225/75 R15 LRD |
| Top Rail: | 2″ X 2″ 1/8″ Tubing |
| Tougue & Neck: | 5″ Channel (6.7 lbs/ft) |
| Up Rights: | 2″ X 2″ 3/16″ Angle Iron |
| Wheels: | 15″ 6-Hole |
| Wire Harness: | 16 Ga. 5-Way Double Insulated Harness w/7-way plug |
Call Carl's Auto Parts for size and availability information: 207-794-6778
LT07 Series
LT07 Series
Tandem Axle Utility/Landscaping Trailers
Available Sizes:
| LT8310032 | 83″ x 10′ Tandem Axle Landscape (4″ Channel Frame) |
| LT8312032 | 83″ x 12′ Tandem Axle Landscape (4″ Channel Frame) |
| LT8314032 | 83″ x 14′ Tandem Axle Landscape (4″ Channel Frame) |
| LT8316032 | 83″ x 16′ Tandem Axle Landscape (4″ Channel Frame) |
| LT8318032 | 83″ x 18′ Tandem Axle Landscape (4″ Channel Frame) |
| LT8320032 | 83″ x 20′ Tandem Axle Landscape (4″ Channel Frame) |
| LT8322032 | 83″ x 22′ Tandem Axle Landscape (4″ Channel Frame) |
| LT8010032 | 80″ x 10′ Tandem Axle Landscape (4″ Channel Frame) |
| LT8012032 | 80″ x 12′ Tandem Axle Landscape (4″ Channel Frame) |
| LT8014032 | 80″ x 14′ Tandem Axle Landscape (4″ Channel Frame) |
| LT8016032 | 80″ x 16′ Tandem Axle Landscape (4″ Channel Frame) |
| LT8018032 | 80″ x 18′ Tandem Axle Landscape (4″ Channel Frame) |
| LT8020032 | 80″ x 20′ Tandem Axle Landscape (4″ Channel Frame) |
| LT7710032 | 77″ x 10′ Tandem Axle Landscape (4″ Channel Frame) |
| LT7712032 | 77″ x 12′ Tandem Axle Landscape (4″ Channel Frame) |
| LT7714032 | 77″ x 14′ Tandem Axle Landscape (4″ Channel Frame) |
| LT7716032 | 77″ x 16′ Tandem Axle Landscape (4″ Channel Frame) |
| LT7718032 | 77″ x 18′ Tandem Axle Landscape (4″ Channel Frame) |
| LT7720032 | 77″ x 20′ Tandem Axle Landscape (4″ Channel Frame) |
| LT7722032 | 77″ x 22′ Tandem Axle Landscape (4″ Channel Frame) |
| LT7210032 | 72″ x 10′ Tandem Axle Landscape (4″ Channel Frame) |
| LT7212032 | 72″ x 12′ Tandem Axle Landscape (4″ Channel Frame) |
| LT7214032 | 72″ x 14′ Tandem Axle Landscape (4″ Channel Frame) |
| LT6010032 | 60″ x 10′ Tandem Axle Landscape (4″Channel Frame) |
| LT6012032 | 60″ x 12′ Tandem Axle Landscape (4″ Channel Frame) |
| LT6014032 | 60″ x 14′ Tandem Axle Landscape (4″ Channel Frame) |
Specs May Include:
| Axles: | 2-3,500 Lb Cambered Dexter Spring 1 Elec. NEV-R-ADJUST Brake |
| Couplers: | 2″ A-Frame 7,000 Lb |
| Crossmembers | 2″ x 2″ x 3/16 Angle Iron (2.44 lbs/ft) |
| EWR Class | TANDEM AXLE UTILITY |
| Fenders: | Removable Smooth Plate |
| Finish (prep): | Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion |
| Finishing Coat/Primer | Sherwin-Williams Powdura OneCure Primer w/Polyester TGIC Gloss Powder Topcoat |
| Flooring: | Treated Wood |
| Frame: | 4″ Channel (4.5 lbs/ft) |
| Gate | 4′ Fold Gate Tubing w/Exp. Metal |
| GAWR: | 3,500 Lb (ea axle) |
| GVWR: | 7,000 lb |
| Jack: | 5,000 Lb Top Wind Swivel Jack |
| Lights: | D.O.T. Stop, Tail, Turn and Clearance LED |
| Product Line | Tandem Axle Utility & Tandem Axle Landscape |
| Product Series: | LT07 |
| Safety Chains: | 7,600 Lb 5/16 x 29 G#30 |
| Side Rails: | 2′ Mech Sides Removable |
| Suspension: | Multi-Leaf Spring |
| Tires: | 205/75 R15 LRC |
| Top Rail: | 2″ X 2″ 1/8″ Tubing |
| Tougue & Neck: | 4″ Channel (4.5 lbs/ft) |
| Up Rights: | 2″ x 2″ x 1/8″ Tubing |
| Wheels: | 15″ 5-Hole Sliver Mod |
| Wire Harness: | 16 Ga. 5-Way Double Insulated Harness w/7-way plug |
The Loadtrail LT Series trailers are available in numerous sizes and configurations, call Carl's Auto Parts for size, availability and ordering information: 207-794-6778
UT07 Series
UT07 Series
UT07 7 X 14 Shown
Available Sizes:
| UT8310032 | 83″ x 10′ Tandem Axle Utility (4″ Channel Frame) |
| UT8312032 | 83″ x 12′ Tandem Axle Utility (4″ Channel Frame) |
| UT8314032 | 83″ x 14′ Tandem Axle Utility (4″ Channel Frame) |
| UT8316032 | 83″ x 16′ Tandem Axle Utility (4″ Channel Frame) |
| UT8318032 | 83″ x 18′ Tandem Axle Utility (4″ Channel Frame) |
| UT8320032 | 83″ x 20′ Tandem Axle Utility (4″ Channel Frame) |
| UT8322032 | 83″ x 22′ Tandem Axle Utility (4″ Channel Frame) |
| UT7710032 | 77″ x 10′ Tandem Axle Utility (4″ Channel Frame) |
| UT7712032 | 77″ x 12′ Tandem Axle Utility (4″ Channel Frame) |
| UT7714032 | 77″ x 14′ Tandem Axle Utility (4″ Channel Frame) |
| UT7716032 | 77″ x 16′ Tandem Axle Utility (4″ Channel Frame) |
| UT7718032 | 77″ x 18′ Tandem Axle Utility (4″ Channel Frame) |
| UT7720032 | 77″ x 20′ Tandem Axle Utility (4″ Channel Frame) |
| UT7722032 | 77″ x 22′ Tandem Axle Utility (4″ Channel Frame) |
| UT7210032 | 72″ x 10′ Tandem Axle Utility (4″ Channel Frame) |
| UT7212032 | 72″ x 12′ Tandem Axle Utility (4″ Channel Frame) |
| UT7214032 | 72″ x 14′ Tandem Axle Utility (4″ Channel Frame) |
| UT6610032 | 66″ x 10′ Tandem Axle Utility (4″ Channel Frame) |
| UT6010032 | 60″ x 10′ Tandem Axle Utility (4″ Channel Frame) |
| UT6012032 | 60″ x 12′ Tandem Axle Utility (4″ Channel Frame) |
| UT6014032 | 60″ x 14′ Tandem Axle Utility (4″ Channel Frame) |
| UT6016032 | 60″ x 16′ Tandem Axle Utility (4″ Channel Frame) |
| UT6018032 | 60″ x 18′ Tandem Axle Utility (4″ Channel Frame) |
| UT6020032 | 60″ x 20′ Tandem Axle Utility (4″ Channel Frame) |
| UT0210032 | 102″ x 10′ Tandem Axle Utility (4″ Channel Frame) |
| UT0212032 | 102″ x 12′ Tandem Axle Utility (4″ Channel Frame) |
| UT0214032 | 102″ x 14′ Tandem Axle Utility (4″ Channel Frame) |
| UT0216032 | 102″ x 16′ Tandem Axle Utility (4″ Channel Frame) |
| UT0218032 | 102″ x 18′ Tandem Axle Utility (4″ Channel Frame) |
| UT0220032 | 102″ x 20′ Tandem Axle Utility (4″ Channel Frame) |
| UT0222032 | 102″ x 22′ Tandem Axle Utility (4″ Channel Frame) |
Specs:
| Axles: | 2-3,500 Lb Cambered Dexter Spring 1 Elec. NEV-R-ADJUST Brake |
| Couplers: | 2″ A-Frame 7,000 Lb |
| Crossmembers | 2″ x 2″ x 3/16 Angle Iron (2.44 lbs/ft) |
| D-Rings: | Hook, 3/8 X 2.75 (U-Hook) |
| EWR Class | TANDEM AXLE UTILITY |
| Fenders: | Removable Smooth Plate |
| Finish (prep): | Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion |
| Finishing Coat/Primer | Sherwin-Williams Powdura OneCure Primer w/Polyester TGIC Gloss Powder Topcoat |
| Flooring: | Treated Wood |
| Frame: | 4″ Channel (4.5 lbs/ft) |
| GAWR: | 3,500 Lb (ea axle) |
| GVWR: | 7,000 lb |
| Jack: | 5,000 Lb Top Wind Swivel Jack |
| Lights: | D.O.T. Stop, Tail, Turn and Clearance LED |
| Product Line | Tandem Axle Utility & Tandem Axle Landscape |
| Product Series: | UT07 |
| Safety Chains: | 7,600 Lb 5/16 x 29 G#30 |
| Side Rails: | Removable |
| Suspension: | Multi-Leaf Spring |
| Tires: | 205/75 R15 LRC |
| Top Rail: | 2″ X 2″ 1/8″ Tubing |
| Tougue & Neck: | 4″ Channel (4.5 lbs/ft) |
| Up Rights: | 2″ x 2″ x 1/8″ Tubing |
| Wheels: | 15″ 5-Hole Sliver Mod |
| Wire Harness: | 16 Ga. 5-Way Double Insulated Harness w/7-way plug |
:
The Loadtrail UT Series trailers are available in numerous sizes and configurations, call Carl's Auto Parts for size, availability and ordering information: 207-794-6778
LS03 Series
LS03 Series
Available Sizes:
| LS8310031 | 83″ x 10′ Single Axle Landscape (4″ Channel Frame) |
| LS8312031 | 83″ x 12′ Single Axle Landscape (4″ Channel Frame) |
| LS8314031 | 83″ x 14′ Single Axle Landscape (4″ Channel Frame) |
| LS8316031 | 83″ x 16′ Single Axle Landscape (4″ Channel Frame) |
| LS8010031 | 80″ x 10′ Single Axle Landscape (4″ Channel Frame) |
| LS8012031 | 80″ x 12′ Single Axle Landscape (4″ Channel Frame) |
| LS8014031 | 80″ x 14′ Single Axle Landscape (4″ Channel Frame) |
| LS8016031 | 80″ x 16′ Single Axle Landscape (4″ Channel Frame) |
| LS7710031 | 77″ x 10′ Single Axle Landscape (4″ Channel Frame) |
| LS7712031 | 77″ x 12′ Single Axle Landscape (4″ Channel Frame) |
| LS7714031 | 77″ x 14′ Single Axle Landscape (4″ Channel Frame) |
| LS7716031 | 77″ x 16′ Single Axle Landscape (4″ Channel Frame) |
| LS7210031 | 72″ x 10′ Single Axle Landscape (4″ Channel Frame) |
| LS6008031 | 60″ x 08′ Single Axle Landscape (4″ Channel Frame) |
| LS6010031 | 60″ x 10′ Single Axle Landscape (4″ Channel Frame) |
| LS6012031 | 60″ x 12′ Single Axle Landscape (4″ Channel Frame) |
| LS6014031 | 60″ x 14′ Single Axle Landscape (4″ Channel Frame) |
| LS6016031 | 60″ x 16′ Single Axle Landscape (4″ Channel Frame) |
| LS4808031 | 48″ x 08′ Single Axle Landscape (4″ Channel Frame) |
| LS4810031 | 48″ x 10′ Single Axle Landscape (4″ Channel Frame) |
Specs:
| Axles: | 1-3.500 Lb Cambered Dexter Spring Idler |
| Couplers: | 2″ A-Frame 7,000 Lb |
| Crossmembers | 2″ x 2″ x 3/16 Angle Iron (2.44 lbs/ft) |
| EWR Class | SINGLE AXLE UTILITY |
| Fenders: | Removable Smooth Plate |
| Finish (prep): | Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion |
| Finishing Coat/Primer | Sherwin-Williams Powdura OneCure Primer w/Polyester TGIC Gloss Powder Topcoat |
| Flooring: | Treated Wood |
| Frame: | 4″ Channel (4.5 lbs/ft) |
| Gate | 4′ Fold Gate Tubing w/Exp. Metal |
| GAWR: | 3,500 Lb (ea axle) |
| GVWR: | 2,990 lb |
| Jack: | 5,000 Lb Top Wind Swivel Jack |
| Lights: | D.O.T. Stop, Tail, Turn and Clearance LED |
| Product Line | Single Axle & Single Axle Landscape |
| Product Series: | LS03 |
| Safety Chains: | 1/4″ Grd. 30 w/Safety Latch Hook |
| Side Rails: | 2′ Mech Sides Removable |
| Suspension: | Multi-Leaf Spring |
| Tires: | 205/75 R15 LRC |
| Top Rail: | 2″ X 2″ 1/8″ Tubing |
| Tougue & Neck: | 4″ Channel (4.5 lbs/ft) |
| Up Rights: | 2″ x 2″ x 1/8″ Tubing |
| Wheels: | 15″ 5-Hole Sliver Mod |
| Wire Harness: | 16 Ga. 5-Way Double-Insulated w/4-way plug |
Loadtrail LS series trailers are available in many width, length and axle configurations. Call Carl's Auto Parts for size, availability and ordering information: 207-794-6778
CC07 Series
Loadtrail CC07
Tandem axle utility/landscaping series
Available Sizes:
| CC8012032 | 80″ x 12′ Tandem Axle Carhauler |
| CC8014032 | 80″ x 14′ Tandem Axle Carhauler |
| CC8016032 | 80″ x 16′ Tandem Axle Carhauler |
| CC8018032 | 80″ x 18′ Tandem Axle Carhauler |
| CC8020032 | 80″ x 20′ Tandem Axle Carhauler |
| CC8022032 | 80″ x 22′ Tandem Axle Carhauler |
| CC0212032 | 102″ x 12′ Tandem Axle Carhauler (80″ Between Fenders) |
| CC0214032 | 102″ x 14′ Tandem Axle Carhauler (80″ Between Fenders) |
| CC0216032 | 102″ x 16′ Tandem Axle Carhauler (80″ Between Fenders) |
| CC0218032 | 102″ x 18′ Tandem Axle Carhauler (80″ Between Fenders) |
| CC0220032 | 102″ x 20′ Tandem Axle Carhauler (80″ Between Fenders) |
| CC0222032 | 102″ x 22′ Tandem Axle Carhauler (80″ Between Fenders) |
Specs May Include:
| Axles: | 2-3,500 Lb Drop Cambered Dexter Spring 1 Elec NEV-R-ADJUST Brake |
| Couplers: | 2″ A-Frame 7,000 Lb |
| Crossmembers | 3″ Channel 24″ OC (3.5 lbs/ft) |
| D-Rings: | 3″ Standard D-Rings |
| EWR Class | CARHAULER |
| Fenders: | Removable Diamond Plate |
| Finish (prep): | Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion |
| Finishing Coat/Primer | Sherwin-Williams Powdura OneCure Primer w/Polyester TGIC Gloss Powder Topcoat |
| Flooring: | Treated Wood |
| Frame: | 5″ Channel (6.7 lbs/ft) |
| GAWR: | 3,500 Lb (ea axle) |
| GVWR: | 7,000 lb |
| Jack: | 5,000 Lb Top Wind Swivel Jack |
| Lights: | D.O.T. Stop, Tail, Turn and Clearance LED |
| Product Line | Car-Haulers & Bob Cats |
| Product Series: | CC07 |
| Ramps: | 5′ Slide-In Ramps |
| Safety Chains: | 7,600 Lb 5/16 x 29 G#30 |
| Suspension: | Multi-Leaf Spring |
| Tires: | 205/75 R15 LRC |
| Top Rail: | 5′ Slide-In Ramps |
| Tougue & Neck: | 5″ Channel (6.7 lbs/ft) |
| Up Rights: | 2″ X 2″ 3/16″ Angle Iron |
| Wheels: | 15″ 5-Hole Sliver Mod |
| Wire Harness: | 16 Ga. 5-Way Double Insulated Harness w/7-way plug |
The CC07 Series trailers are available in numerous sizes and configurations, call Carl's Auto Parts for size, availability and ordering information: 207-794-6778
Loadtrail Trailers
Loadtrail started production on trailers as a small family owned and operated business in 1996. With one small shop, a few acres, and 31 employees they set out to build high quality, reliable trailers for the long haul.
Today, Loadtrail is still family owned and operated, just like Carl's Auto Parts. Carl's Auto Parts is proud to offer a variety of Loadtrail models that will fit any and every hauler’s needs, from goosenecks to single axles. This page represents a few model families (SE, UT, CH, etc...) and each family has numerous configurations for size and load handling capability.
CP10 Series Car Haulers
Rail Side Utility
Rail Side Utility
FEATURES
- Angle Steel Frame & Crossmembers
- 4” Steel Channel Tongue
- 2”x 1-1/2” Steel Tube Uprights
- 2”x 2” Steel Tube Top Rail
- Enclosed Sealed Wiring Harness
- Full DOT Compliant, LED Lighting
- A-Frame Posi-Lock Coupler & Dual Safety Chains
- Set-Back Jack
- 50” Spring Assisted Gate with Grab Handle
- Steel Tread Plate Fenders
- Leaf Spring Suspension with Easy Lube Hubs
- Radial Tires on 15” Steel Wheels
- 2x8 Treated, #1 Grade Wood Deck
- Front Board Retainer & Rear End Caps
- Stake Pockets
- Spare Tire Mount
- High Gloss Powder Coat Finish
- Limited 3-Year Warranty
AVAILABLE OPTIONS
- Dovetail
- Electric Brake Axle (Single Models)
- Aluminum Wheels
- Tongue Mounted Toolbox
- 2-5/16” Adjustable Height Coupler (Tandem Models)
The Rail Side utility trailer configurations vary in size and options. Please call Carl's Auto Parts for availability and ordering information: 207-794-6778
Solid Side Utility Trailer
H&H Solid Side Utility
FEATURES
- 12-Gauge Steel Frame
- Steel Angle Crossmembers
- Steel Channel Tongue
- 12-Gauge Steel, 15” Tall Sides
- A-Frame Posi-Lock Coupler
- Dual Safety Chain & Hooks - DOT Approved
- Enclosed Sealed Wiring Harness
- Set-Back Jack
- 50” Spring Assisted Gate with Grab Handle
- Steel Tread Plate Fenders
- High Gloss Powder Coat Finish
- 2x8 Treated, #1 Grade Wood Deck
- Front Board Retainer & Rear End Cap
- D-Rings, Side Mounted
- Spare Tire Mount
- Full DOT Compliant, LED Lighting
- Limited 3-Year Warranty
AVAILABLE OPTIONS
- 2-5/16” Adjustable Height Coupler
- Bi-Fold Gate Upgrade
- 24” Tall Front & Sidewall Height
- Tongue Mounted Toolbox
- Spare Tire
